Gem Cascade

· Overview

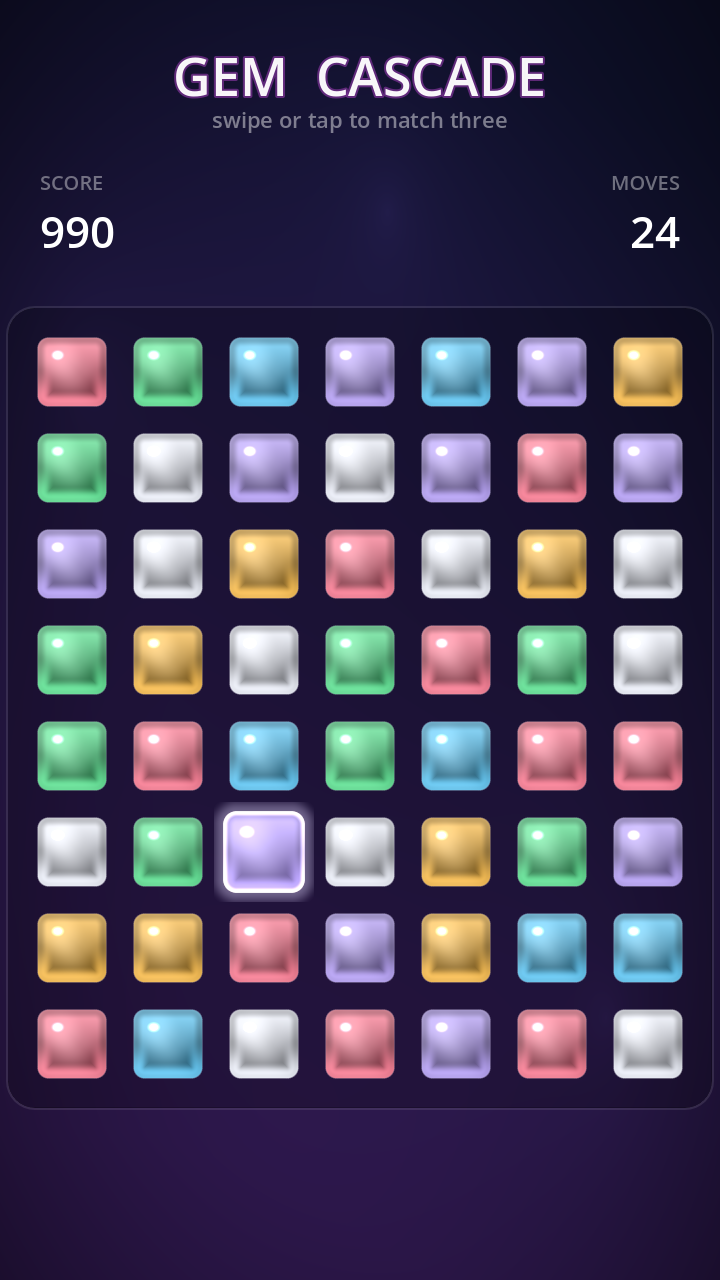

Gem Cascade is the classic swap-to-match-three loop, polished for touch: you swap two adjacent jewels, lines of three-or-more clear in a shower of particles, everything above falls to fill the gap, and fresh gems pour in from the top — often triggering chain reactions that the game rewards with rising combos, score pop-ups and a screen shake that grows with the combo.

The entire thing is built from three scripts and two shaders:

• Game.gd — the root: builds the animated background, the HUD, and the board, then keeps the HUD in sync.
• Board.gd — the brain: the grid, input, match detection, cascades, gravity, specials, and all timing.
• Gem.gd — one jewel: its shader visual, its particle burst, and its personal animations.
• gem.gdshader / background.gdshader — the look.

★ The philosophy of “juice”

“Juice” is the game-feel term for the layer of feedback that has no effect on the rules but makes every action feel physical and rewarding. A match that simply deletes three squares is correct; a match that flashes, bursts into colored sparks, drops a floating +90, and nudges the whole board feels good. Gem Cascade follows a few consistent principles:

1 Architecture & scene graph

There is a single real scene file, scenes/Main.tscn, holding one node with Game.gd attached. Everything else is created in code. Authoring the board, the HUD and 56 gems in .tscn files would mean hand-managing dozens of node UIDs; building them from script is cleaner, diff-friendly, and keeps the whole project legible.

Why the HUD lives on its own CanvasLayer

The board physically moves when it shakes (we tween Board.position). If the score and title were children of the board, they would shake too. Putting the HUD on a separate CanvasLayer isolates it, so the playfield can rattle while the text stays rock-steady.

Signal flow

The board never touches the HUD directly. It emits four signals; Game.gd listens and updates labels. This keeps the game logic completely unaware of presentation.

signal score_changed(total: int)
signal combo_changed(combo: int)
signal moves_changed(moves: int)
signal shuffled()

_board = Board.new()
# Connect BEFORE add_child: add_child runs Board._ready(), which
# emits the initial score/moves — we must already be listening.
_board.score_changed.connect(_on_score)
_board.moves_changed.connect(_on_moves)
_board.combo_changed.connect(_on_combo)
_board.shuffled.connect(_on_shuffled)
add_child(_board)

2 Data model & the game loop

The board is a 7 columns × 8 rows grid of 96-pixel cells. The model is a single 2-D array, _grid[col][row], holding either a Gem or null. Each Gem also stores its own col/row so it knows where it belongs.

World ↔ grid geometry

One function maps a grid cell to a screen position; its inverse maps a touch point back to a cell. The board is centered horizontally and pushed below the HUD with a fixed origin.

func _cell_pos(c, r) -> Vector2:
    return _origin + Vector2(c * CELL, r * CELL)

func _gem_at_point(p) -> Gem:
    var local = p - _origin + Vector2(CELL, CELL) * 0.5
    var c = int(floor(local.x / CELL))
    var r = int(floor(local.y / CELL))
    if c < 0 or c >= COLS or r < 0 or r >= ROWS: return null
    return _grid[c][r]

The central loop

Almost the entire game lives inside one re-entrant async method, _resolve(), that runs after every valid swap. It loops until the board is stable:

Because each iteration awaits its animations, the loop naturally paces itself to the visuals: a 4-deep cascade plays as four distinct, satisfying beats rather than one instant collapse. A single boolean, _busy, blocks input for the whole sequence so the player can’t desync the board.

3 Input & swapping

The board accepts both interaction styles players expect, from one _unhandled_input handler that reads touch events (the project enables emulate_touch_from_mouse, so the very same code works with a mouse on desktop and a finger on a phone):

• Swipe — press a gem and drag past 45% of a cell; the dominant axis picks the neighbor to swap with.
• Tap-tap — tap a gem to select it (it starts breathing), then tap an adjacent gem to swap. Tapping it again deselects; tapping a far gem reselects.

func _unhandled_input(event):
    if _busy: return                 # ignore input mid-animation
    if event is InputEventScreenTouch:
        if event.pressed:
            _press_gem = _gem_at_point(event.position)
            _press_pos = event.position
            _swiped = false
        else:
            _on_release(event.position)
    elif event is InputEventScreenDrag and _press_gem and not _swiped:
        var delta: Vector2 = event.position - _press_pos
        if delta.length() > CELL * 0.45:
            _swiped = true
            _attempt_dir(_press_gem, delta)

The swap, and the “no” animation

A swap optimistically exchanges the two gems in the grid and tweens them into place. Then it checks for matches. If there are none (and neither piece is a special), it was an illegal move — so it swaps them back, and that little there-and-back is itself the feedback that says “nope.” Only a successful swap costs a move.

func _try_swap(a, b):
    _busy = true
    _swap_in_grid(a, b)
    a.move_to(_cell_pos(a.col, a.row), 0.18)
    b.move_to(_cell_pos(b.col, b.row), 0.18)
    await get_tree().create_timer(0.20).timeout

    if _find_matches().is_empty() and not has_special:
        _swap_in_grid(a, b)            # put them back…
        a.move_to(…); b.move_to(…)  # …and slide back: the "invalid" tell
        _busy = false
        return

    _moves -= 1
    emit_signal("moves_changed", _moves)
    await _resolve(a, b)
    _busy = false

4 Matching & cascades

Match detection scans the grid for runs: 3-or-more same-colored gems in a row or column. _find_runs() walks each row and each column once, collecting maximal runs of length ≥ 3. Each run records its cells, length, and orientation — the length is what later decides whether a special piece is forged.

# Horizontal pass (the vertical pass is the mirror image)
for r in ROWS:
    var c = 0
    while c < COLS:
        var g = _grid[c][r]
        if g == null: c += 1; continue
        var run = [Vector2i(c, r)]
        var cc = c + 1
        while cc < COLS and _grid[cc][r] and _grid[cc][r].type == g.type:
            run.append(Vector2i(cc, r)); cc += 1
        if run.size() >= 3:
            runs.append({"cells": run, "len": run.size(), "horiz": true})
        c = cc

Cascades for free

Because _resolve() re-runs _find_runs() at the top of every loop iteration, cascades require no special code. Clear some gems → gravity drops the survivors and pours new ones in → the loop runs again → if the new arrangement made fresh matches, they clear too, with the combo counter one higher. The loop only exits when a full pass finds nothing. Each pass is separated by short awaits, so a deep chain reads as a rhythmic series of pops rather than a blur.

5 Gravity & refill

After gems are cleared, _collapse_and_refill() processes each column independently in two steps:

1. Compact down. Walk the column bottom-to-top with a write cursor. Each surviving gem is moved to the lowest empty slot and tweened there. Gems that fall further travel longer — the duration scales with distance (0.16 + dist × 0.035) so they all land in a believable spread rather than snapping together.
2. Refill from above. Whatever space is left at the top is filled with brand-new gems spawned off-screen above the board, then tweened down into place with a stagger.

Both motions use TRANS_BOUNCE easing, so gems hit their slot and visibly bounce — the single biggest contributor to the board feeling like physical objects instead of a spreadsheet.

    var dist = write - r
    g.move_to(_cell_pos(c, write), 0.16 + dist * 0.035, 0.0, Tween.TRANS_BOUNCE)
    …
    # new gems pour in from above with a per-gem stagger
    g.position = _cell_pos(c, -1 - spawn)
    g.move_to(_cell_pos(c, r), 0.28 + (r + spawn) * 0.03, spawn * 0.02, Tween.TRANS_BOUNCE)

The method tracks the longest tween it scheduled and awaits exactly that long — so the resolve loop resumes the instant the slowest gem has landed, never sooner (which would clip the animation) and never on a fixed guess (which would stutter).

6 Special blast pieces

Matching more than three forges a special at one surviving cell instead of clearing it. Specials are the spectacle pieces — they’re what turns a good chain into a fireworks show.

Choosing the survivor

When a run is long enough to forge a special, which gem becomes it? Preferably the one the player just moved — it feels causal. _pick_survivor() looks for the swapped gem inside the run and keeps it; otherwise it falls back to the middle of the run. That cell is removed from the clear-set so it survives, then upgraded with set_special() (which plays an elastic “forge” pop).

Chain-triggering blasts (a tiny BFS)

The interesting case is when a blast is itself caught in a match — or when one blast’s area-clear catches another blast. _expand_specials() handles this with a breadth-first search: seed a queue with every special in the current clear-set, and for each one add the cells it destroys; if any of those cells holds another special, queue it too. The clear-set grows until no new blasts are reached, and a _shake() punctuates the chain.

while not queue.is_empty():
    var cell = queue.pop_back()
    if g.special == Gem.STRIPE:
        for c in COLS: targets.append(Vector2i(c, cell.y))   # whole row
        for r in ROWS: targets.append(Vector2i(cell.x, r))   # whole column
    elif g.special == Gem.BOMB:
        for c,r in grid: if type matches: targets.append(…)  # every same-color gem
    for t in targets:
        matched[t] = true
        if grid[t] is special and not done: queue.append(t)  # chain!

The shader draws the two specials distinctly: a stripe gets a bright horizontal bar; a color bomb gets a pulsing white core (see §10).

7 No-moves detection & reshuffle

After each resolve, the board checks whether any legal move still exists. _has_possible_move() virtually tries every adjacent swap on the live grid and asks “would this create a 3-run?” — restoring the grid immediately afterward. The same routine (_swap_makes_match) powers the swipe/tap legality check, so there’s one source of truth.

func _swap_makes_match(c1, r1, c2, r2) -> bool:
    # swap on the real grid, test, swap back — no allocation, no copy
    _grid[c1][r1] = b; _grid[c2][r2] = a
    var found = _cell_in_match(c1, r1) or _cell_in_match(c2, r2)
    _grid[c1][r1] = a; _grid[c2][r2] = b
    return found

If no move exists, _reshuffle() re-rolls every gem’s color (retrying until the new board has at least one move and no free matches), then dissolves and re-pours the whole board with the same staggered entrance used at startup — and the HUD flashes “NO MOVES — SHUFFLE!”.

8 Scoring & combos

Score is deliberately simple and multiplicative on the combo, so cascades are where the points are:

var gained = matched.size() * 30 * combo

The first clear of a move is combo = 1; each additional cascade step bumps it. So clearing three gems three times in a chain is worth far more than clearing nine at once. The combo number is the spine that the visuals hang off:

• The pop-up shows +amount, and from combo 2 it appends ×combo and grows its font.
• The screen shake fires from combo 2, with amplitude min(2 + combo, 8).
• The HUD combo banner fades in with a spring pop and fades out a beat later.

9 Why the art is 100% procedural

There are no PNGs of gems. Each jewel is a quad with a fragment shader that draws the gem in real time, tinted by a single per-instance base_color uniform. Even the particle and gem textures are generated in code at load (an 8×8 white square; a 32×32 soft radial dot).

static func _dot_tex():           # soft particle sprite
    for y,x in 32×32:
        var a = clamp(1 - dist, 0, 1)
        a = a * a                  # square it → soft falloff
        img.set_pixel(x, y, Color(1,1,1, a))

The palette was chosen for maximum hue separation (color-blind-friendlier than the usual red/green/blue trio) so matches read instantly. The CSS jewels above are an approximation; the real ones are shaded by the fragment shader below.

10 The gem shader, layer by layer

This is where most of the “it looks good” lives. gem.gdshader is a canvas_item fragment shader applied to each gem’s Sprite2D. It receives the gem’s tint and three control uniforms, and composites the jewel from a stack of cheap analytic layers. Every gem is the same shader; only the uniforms differ.

uniform vec4  base_color : source_color;   // the gem's hue (per instance)
uniform float selected = 0.0;             // 0..1 selection pulse (animated from GDScript)
uniform int   special  = 0;               // 0 normal · 1 stripe · 2 color-bomb
uniform float shimmer  = 1.0;             // global lustre intensity

The shape: a rounded-box signed distance field

Instead of sampling a sprite, the gem’s shape is defined mathematically by a signed distance field (SDF). For any pixel, rounded_box() returns the signed distance to the gem’s edge — negative inside, zero on the border, positive outside. That single number drives the silhouette, the anti-aliasing, the beveled edge, the rim light, and the selection ring.

float rounded_box(vec2 p, vec2 b, float r){
    vec2 q = abs(p) - b + r;
    return length(max(q, vec2(0.0))) + min(max(q.x, q.y), 0.0) - r;
}

void fragment(){
    vec2 uv = UV * 2.0 - 1.0;              // remap to -1..1, centered
    float d  = rounded_box(uv, vec2(0.80), 0.26);
    float aa = fwidth(d) * 1.5;            // 1px-consistent edge softness
    float mask = 1.0 - smoothstep(0.0, aa, d);  // 1 inside → 0 outside

The composite stack

On top of the silhouette, the body color is built up from these layers, in order. Each is a few cheap math ops; together they read as a faceted, lit jewel:

    float rad = length(uv);
    vec3 col = base_color.rgb;
    // 1 · top-lit vertical gradient
    vec3 body = mix(mix(col, vec3(1.0), 0.42), col*0.38, smoothstep(-0.9, 1.0, uv.y));
    // 2 · center pop
    body = mix(body, mix(col, vec3(1.0), 0.55), smoothstep(0.7, 0.0, rad)*0.35);
    // 3 · beveled darker edge
    body *= 1.0 - smoothstep(0.18, 0.0, abs(d + 0.04)) * 0.22;
    // 4 · broad soft lustre, drifting with TIME
    float band = sin((uv.x - uv.y) * 1.25 - TIME * 0.7);
    body += smoothstep(0.25, 1.0, band) * 0.08 * shimmer;
    // 5 · crisp gloss dot + soft surround
    float spec = smoothstep(0.18, 0.0, length((uv - vec2(-0.34,-0.40)) * vec2(1.0,1.25)));
    body += spec * 0.95;
    body += smoothstep(0.6, 0.0, length(uv - vec2(-0.26,-0.32))) * 0.12;
    // 6 · bottom rim bounce light
    float rim = smoothstep(-0.1, 0.7, uv.y) * smoothstep(0.35, 0.05, abs(d + 0.03));
    body += rim * mix(col, vec3(1.0), 0.35) * 0.55;

Specials, drawn in the same pass

    if (special == 1)        // stripe → bright horizontal bar
        body = mix(body, vec3(1.0), smoothstep(0.15, 0.08, abs(uv.y)) * 0.85);
    else if (special == 2){  // color bomb → pulsing white core
        float pulse = 0.5 + 0.5 * sin(TIME * 5.0);
        body = mix(body, vec3(1.0), smoothstep(0.5, 0.0, rad) * (0.4 + 0.4*pulse));
    }

10a Getting the lustre right (an iteration story)

The shine did not look good on the first try, and the fix is instructive — it’s the difference between a shader that says “amateur” and one that says “jewel.” The honest progression:

float sweep = sin((uv.x - uv.y)*2.5 - TIME*2.0);
body += smoothstep(0.86, 1.0, sweep) * 0.25;

// (a) wide, faint, slow drifting sheen
float band = sin((uv.x - uv.y)*1.25 - TIME*0.7);
body += smoothstep(0.25, 1.0, band) * 0.08;
// (b) a crisp, STATIC specular hotspot
body += spec * 0.95;

10b The selection glow — shader + tween together

The first selection effect was a single scale-up that then sat still — it read as weak. The fix is a collaboration between the shader (which can draw glow outside the gem) and GDScript (which animates it forever while selected).

Shader side: a halo that lives beyond the body

Normally a fragment outside the gem is discarded. But a glow needs to bloom past the silhouette — so the alpha is computed jointly: it’s the max of the body mask and an outward bloom term that only exists when selected > 0. Where the body is absent, the pixel shows a brightened tint of the gem color instead of being thrown away.

    // outward bloom drives EXTRA alpha beyond the body silhouette
    float bloom = selected * (1.0 - smoothstep(0.0, 0.34, max(d, 0.0)));
    float alpha = max(mask, bloom * 0.7);
    if (alpha <= 0.004) discard;
    …
    // a bright ring exactly on the body edge + an inner brighten
    float sel_ring = selected * smoothstep(0.09, 0.0, abs(d + 0.02));
    body += mix(col, vec3(1.0), 0.7) * sel_ring * 0.9;
    body += col * selected * 0.22;
    // compose: bloom color shows where the body mask is absent
    vec3 final = mix(mix(base_color.rgb, vec3(1.0), 0.65), body, mask);

Script side: a looping “breathing” pulse

A selected gem should feel alive, so GDScript runs an infinite looping tween that oscillates the sprite’s scale and the shader’s selected value together — they breathe in sync. Deselecting kills the loop and springs the gem back to rest. Sine easing makes the breathing smooth; the two halves give a slow in-out rhythm.

func set_selected(on):
    if _sel_tween and _sel_tween.is_valid(): _sel_tween.kill()
    if on:
        _sprite.scale = base * 1.1
        _sel_tween = create_tween().set_loops()                    # forever
        _sel_tween.tween_property(_sprite, "scale", base*1.2, 0.5).set_trans(SINE)
        _sel_tween.parallel().tween_method(_set_sel, 1.0, 0.55, 0.5)  # glow down
        _sel_tween.tween_property(_sprite, "scale", base*1.06, 0.5).set_trans(SINE)
        _sel_tween.parallel().tween_method(_set_sel, 0.55, 1.0, 0.5)  # glow up
    else:
        _set_sel(0.0)
        create_tween().tween_property(_sprite, "scale", base, 0.18).set_trans(BACK)

11 Tween-driven motion

Every gem movement in the game funnels through one method, Gem.move_to(). The caller picks the duration, an optional start delay (for staggering), and an easing curve — and that single choice of curve is what gives each kind of motion its character.

func move_to(target, duration, delay = 0.0, trans = Tween.TRANS_BACK):
    var t = create_tween()
    if delay > 0.0: t.tween_interval(delay)
    t.tween_property(self, "position", target, duration).set_trans(trans).set_ease(EASE_OUT)

Staggering = life

Notice the delay argument threaded through the fills: (c + r) * 0.03 at startup, spawn * 0.02 on refill. Without it, 56 gems would arrive on the exact same frame — a wall. With it, they arrive in a diagonal wave. The same trick (tiny per-element delays) is what makes the entrance, the refill, and the reshuffle all feel choreographed rather than mechanical.

12 Particle bursts

Every cleared gem fires a one-shot GPUParticles2D burst in its own color, so a match dissolves into a spray of matching sparks. The emitter is configured once in Gem.setup() and triggered in pop().

_burst.amount = 18
_burst.one_shot = true
_burst.explosiveness = 1.0     # all at once, not a stream
_burst.lifetime = 0.6
pm.spread = 180.0             # full circle
pm.gravity = Vector3(0, 320, 0) # sparks fall realistically
pm.initial_velocity = 120..320
pm.angular_velocity = ±400      # tumbling
pm.scale_curve = 1 → 0          # shrink to nothing
pm.color = COLORS[type]          # tinted to the gem

func pop():
    _burst.restart(); _burst.emitting = true
    var t = create_tween().set_parallel(true)
    # flash bigger, THEN shrink to zero while spinning
    t.tween_property(_sprite,"scale", base*1.4, 0.10)
    t.chain().tween_property(_sprite,"scale", ZERO, 0.18).set_trans(BACK)
    t.parallel().tween_property(_sprite,"rotation", randf_range(-PI,PI), 0.28)
    await get_tree().create_timer(0.65).timeout   # let sparks live
    queue_free()

The clear has three beats happening at once: the gem flashes 40% bigger, then shrinks to nothing while spinning a random amount, while the sparks fly and fall. The node only frees itself after 0.65 s so the particles aren’t cut off mid-air. local_coords = false means sparks keep flying in world space even as the gem node is scaled away.

13 Screen shake

Impact is sold with a short positional shake of the whole Board node. It’s a chain of six tiny random offsets followed by a settle back to zero. Crucially it fires only from combo 2+ and its amplitude scales with the combo, so the screen punches harder the deeper the chain — and a plain single match stays calm.

func _shake(strength):
    var t = create_tween()
    for i in 6:
        t.tween_property(self, "position",
            Vector2(randf_range(-strength,strength), randf_range(-strength,strength)), 0.03)
    t.tween_property(self, "position", Vector2.ZERO, 0.05)

# callers:
if combo >= 2: _shake(min(2.0 + combo, 8.0))   # grows with the chain, capped
_shake(5.0)                                  # a firm jolt whenever a blast triggers

Because the HUD is on a separate CanvasLayer (see §1), only the playfield rattles — the text never blurs. The cap at 8 px keeps even a huge chain from becoming nauseating.

14 Floating score pop-ups

Each clear spawns a temporary Label at the average position of the cleared gems, so the number appears right where the action was. It drifts up, fades out, and frees itself. From combo 2 it shows the multiplier and grows its font, so a big chain literally throws a bigger number.

var avg = (sum of cleared cell positions) / count   # appear at the match
lbl.text = combo < 2 ? "+%d" : "+%d  x%d"
lbl.add_theme_font_size_override("font_size", 30 + combo*6)  # bigger per combo
var t = create_tween().set_parallel(true)
t.tween_property(lbl, "position", up_by_70px, 0.7)   # float up
t.tween_property(lbl, "modulate:a", 0.0, 0.7).set_delay(0.25)  # lingers, then fades
t.chain().tween_callback(lbl.queue_free)            # self-cleanup

A gold fill with a dark outline keeps the number legible over any gem color underneath.

15 HUD pulse

The stat labels don’t just change text — they react. Every time the score or moves update, the label springs to 120% and elastically settles back, so your eye is drawn to what changed. The combo banner fades in with the same pop on a chain and fades out a beat later.

func _pulse(node, scale = 1.2):
    node.pivot_offset = node.size * 0.5            # scale from center
    var t = create_tween()
    t.tween_property(node, "scale", Vector2.ONE*scale, 0.08).set_trans(BACK)
    t.tween_property(node, "scale", Vector2.ONE, 0.14).set_trans(ELASTIC)

16 The living background

A full-screen ColorRect on the bottom-most CanvasLayer runs background.gdshader: a vertical gradient whose split line gently waves, three soft glow blobs that drift on lazy sine/cosine orbits, and a vignette that focuses the eye on the board. It’s extremely cheap and ensures the screen is never static even when the player is just thinking.

void fragment(){
    vec2 uv = UV;
    // gradient line waves slowly across x and time
    float g = uv.y + 0.12 * sin(uv.x*3.0 + TIME*0.25);
    vec3 col = mix(color_a.rgb, color_b.rgb, clamp(g, 0.0, 1.0));
    // three drifting glow blobs
    for (int i = 0; i < 3; i++){
        vec2 c = vec2(0.5 + 0.42*sin(TIME*0.18 + i*2.1),
                      0.5 + 0.42*cos(TIME*0.15 + i*1.7));
        col += (0.05 / (distance(uv,c)*7.0 + 0.35)) * glow.rgb;
    }
    col *= smoothstep(1.25, 0.25, distance(uv, vec2(0.5)));  // vignette
    COLOR = vec4(col, 1.0);
}

· Tuning reference — the magic numbers

Game-feel is in the constants. These are the dials that were tuned against real screenshots; they’re collected here so the whole feel can be re-balanced in one place.

· Performance & mobile

• Mobile renderer / Metal. The project uses Godot’s mobile rendering method; verified running on Apple Silicon (Metal 4.0).
• Cheap shaders. Both shaders are a handful of smoothstep/sin/length ops per pixel — no loops over textures, no branches in the hot path beyond the special marker. 56 small quads is nothing for a GPU.
• One material per gem, two shared textures. Each gem owns a ShaderMaterial (so its selected/special uniforms are independent), but the white quad and the soft particle dot are built once and shared by all.
• Self-cleaning nodes. Popped gems and score pop-ups queue_free() themselves after their animation; nothing leaks across a long session.
• Resolution-independent. canvas_items stretch with an expand aspect means it scales cleanly to any phone, and the SDF gems stay crisp at any size.
• Touch-first input with emulate_touch_from_mouse, so one code path serves both finger and mouse.

· File map — where to look

Run it: godot --path . scenes/Main.tscn  ·  or open project.godot in the editor.

· How it was verified

Because the game is animation-heavy, it was checked by rendering real frames, not by reading code. A temporary harness scene added a sibling node that, after a delay, drove the board’s own logic to play a sequence of legal swaps — finding them via the board’s _swap_makes_match() and calling _try_swap() — while saving get_viewport().get_texture().get_image() to PNGs every beat, then quitting. The captured frames confirmed fills with no false matches, swaps, cascades, the “+90 ×3” combo pop-ups, particle bursts, and the selection halo. The harness was deleted before shipping.
